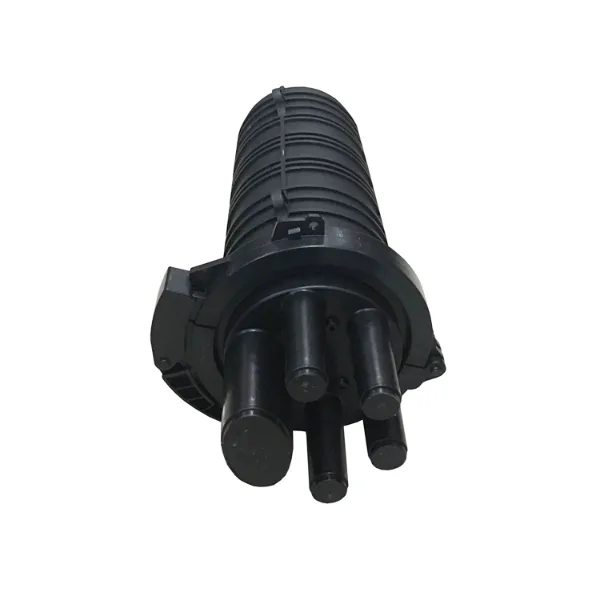

120 Core Fiber Optic Splice Closure – IP68 (FTTH/ODN) – The Ultimate Protection for High-Density Fiber Networks
Designed for mission-critical fiber optic deployments, our 120-core IP68 fiber splice closure sets the industry standard for FTTH (Fiber to the Home), ODN (Optical Distribution Network), and 5G network applications. This heavy-duty fiber enclosure combines military-grade protection with ultra-low signal loss, featuring corrosion-resistant stainless steel hardware, gel-free waterproof sealing, and tool-less access for faster field maintenance. Perfect for telecom operators, data center interconnects, and smart city infrastructure, it delivers unmatched reliability in aerial, underground, and direct-burial installations. The modular design supports both ribbon and loose tube fibers, making it the most versatile fiber management solution for today’s high-bandwidth demands.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Capacity | 120 cores (expandable) |
| Protection Class | IP68 (submersible) |
| Operating Temp | -40°C to +85°C |
| Insertion Loss | ≤0.15dB @ 1310/1550nm |
| Return Loss | ≥55dB |
| Connector Types | SC/LC/FC/MPO (optional) |
| Material | Reinforced PC+304SS |

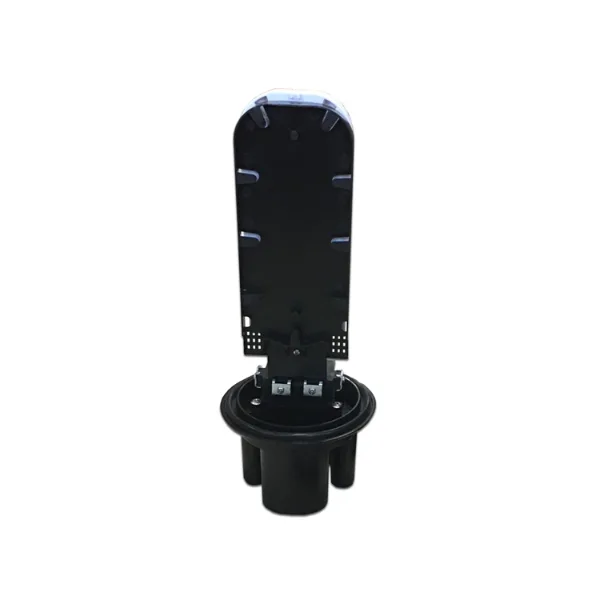

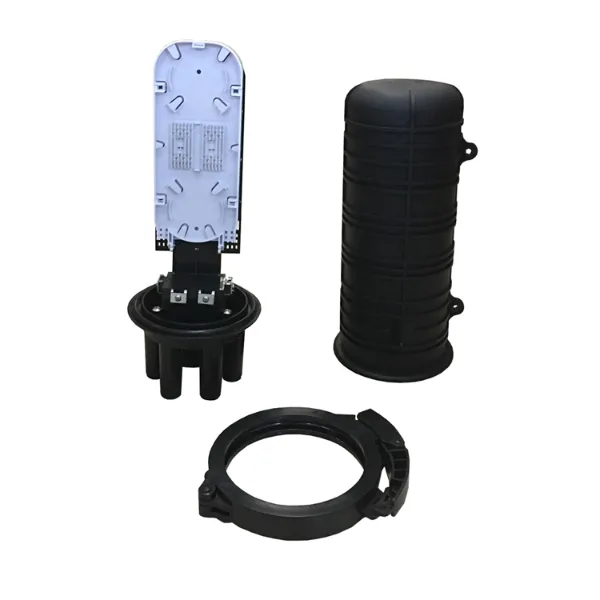

| Splice Trays | 6x (24-splice capacity) |
Key Applications
FTTH Networks: Terminal distribution for last-mile connectivity
Data Center Interconnects: High-density cross-connection points
5G Infrastructure: Base station backhaul and small cell deployments
Industrial Networks: Oil/gas, transportation, and utility monitoring systems
Certifications & Compliance
✔ IEC 61753-1 (Environmental Class E)
✔ GR-20-CORE (Outdoor Reliability Standard)
✔ Telcordia GR-771 (Generic Requirements)
✔ RoHS/REACH/CE Certified
Why We Stand Out
✅ Patented Sealing System – 100% waterproof without messy gels
✅ Rapid Deployment – Pre-installed splice trays save 40% installation time
✅ Future-Ready – Easily upgrades to 144/196 cores
✅ Lifetime Support – 24/7 technical assistance included
FAQ
Q: What’s the maximum cable diameter?
A: Accommodates cables up to 25mm with strain relief boots
Q: Can it be wall-mounted?
A: Yes, includes universal mounting brackets
Q: How many splice trays are included?
A: 6 trays standard (24 splices each), expandable to 8
Q: Is there an armored version?
A: Available with Kevlar reinforcement for high-risk areas
Q: What’s the warranty period?
A: 10-year warranty with optional lifetime coverage
