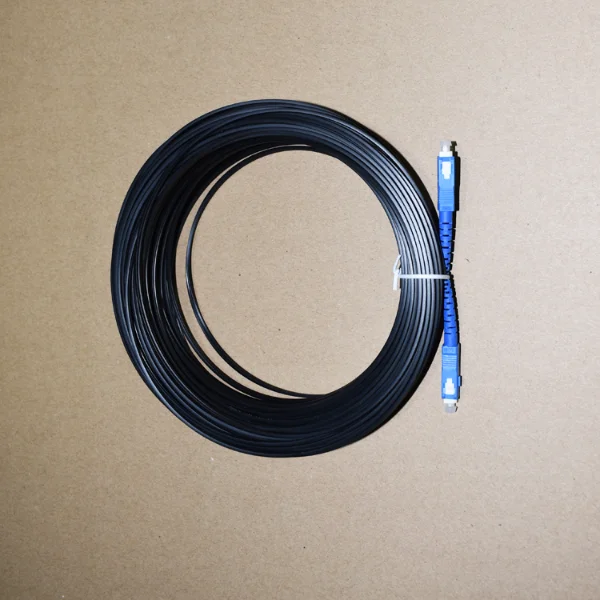

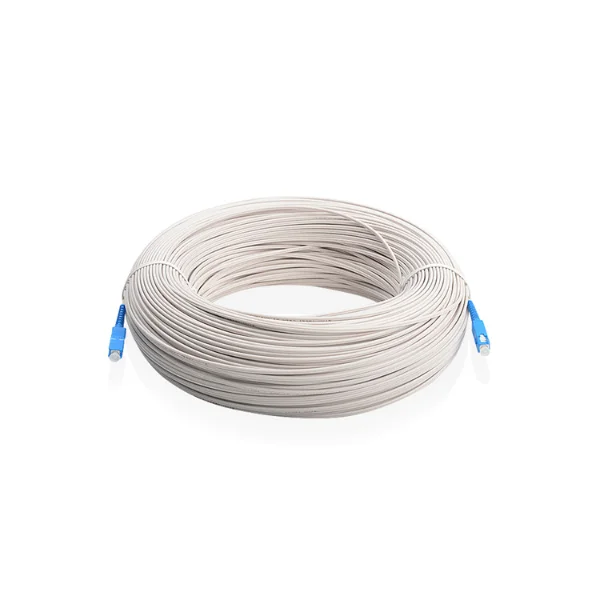

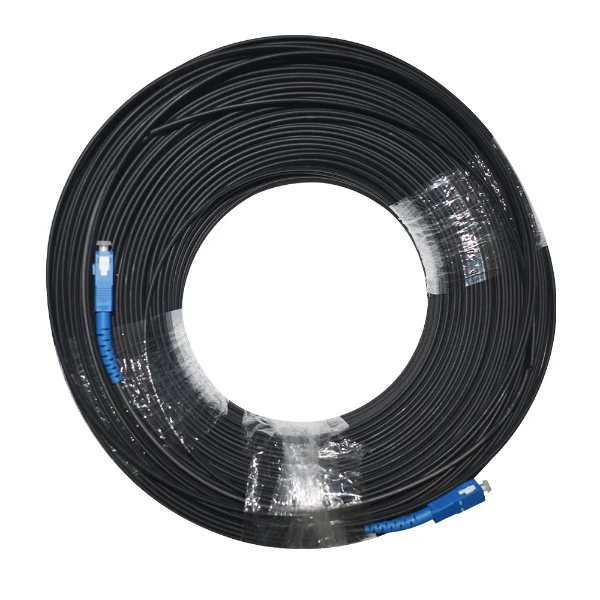

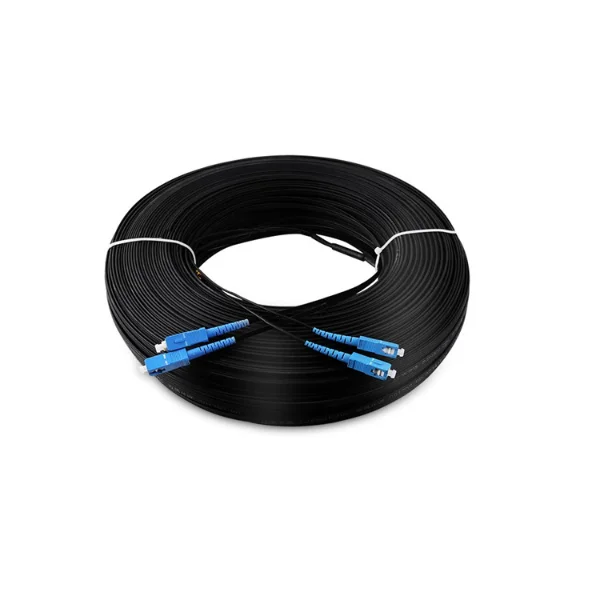

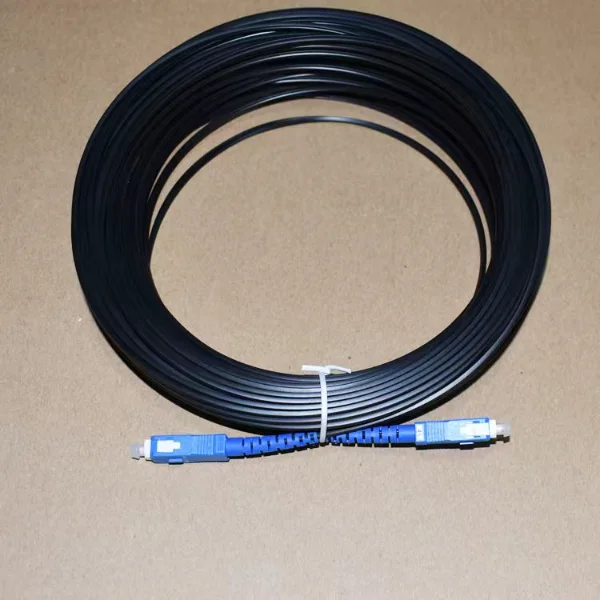

FTTH Optical Fiber Patch Cord | SC/APC to SC/APC | G.657A | OEM
Premium Single-Mode Fiber Patch Cable for High-Speed Networks
Our FTTH fiber optic patch cord delivers exceptional performance with SC/APC connectors and G.657A bend-resistant fiber, ensuring ultra-low loss for FTTH, 5G, and data centers. This OEM customizable fiber jumper is ideal for GPON, CATV, and telecom networks, providing reliable, high-speed connectivity.
Technical Specifications
| Feature | Specification |
|---|---|
| Fiber Type | G.657A Single Mode |
| Wavelength | 1310nm / 1550nm |
| Attenuation | ≤0.3 dB/km (1310nm), ≤0.2 dB/km (1550nm) |
| Connectors | SC/APC (8° angled) |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥55 dB |
| Operating Temp. | -40°C to +80°C |
Key Applications
FTTH / GPON – Stable broadband & TV signal transmission
Data Centers – High-density, low-loss patching
5G Networks – Supports high-speed fronthaul/backhaul
CATV & Telecom – Reduced reflection for clearer signals
Certifications & Standards
✅ ITU-T G.657A | ✅ IEC 61754-4 | ✅ RoHS
Why Choose Us?
✔ Bend-Insensitive – Superior durability
✔ Low Insertion Loss – Optimized signal quality
✔ OEM Customization – Lengths, colors, packaging
✔ Rigorous Testing – 100% quality assurance
FAQ
Q: SC/APC vs. SC/UPC?
A: SC/APC reduces reflections; ideal for FTTH/CATV.
Q: Custom lengths available?
A: Yes, 1m–100m with fast lead time.
Q: Armored options?
A: Yes, for outdoor/rugged use.
Q: GPON compatible?
A: Perfectly optimized for GPON/XGS-PON.
Q: MOQ?
A: Low MOQ, bulk discounts available.
