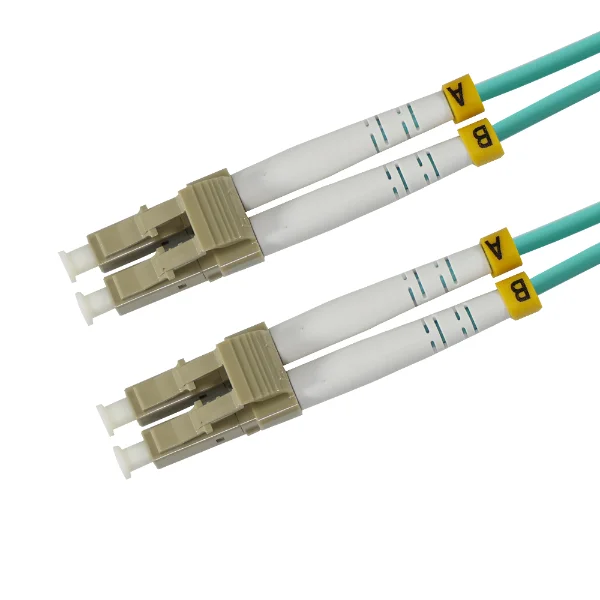

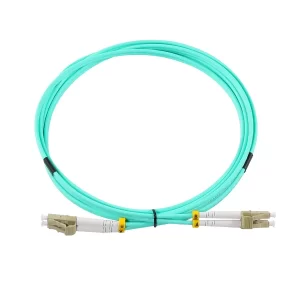

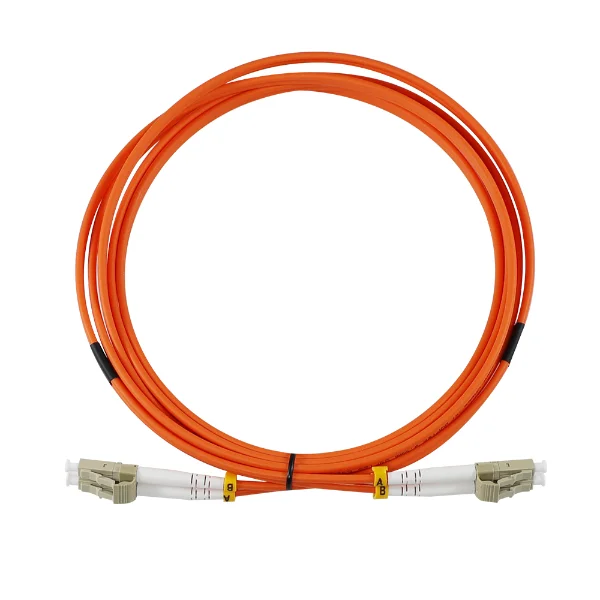

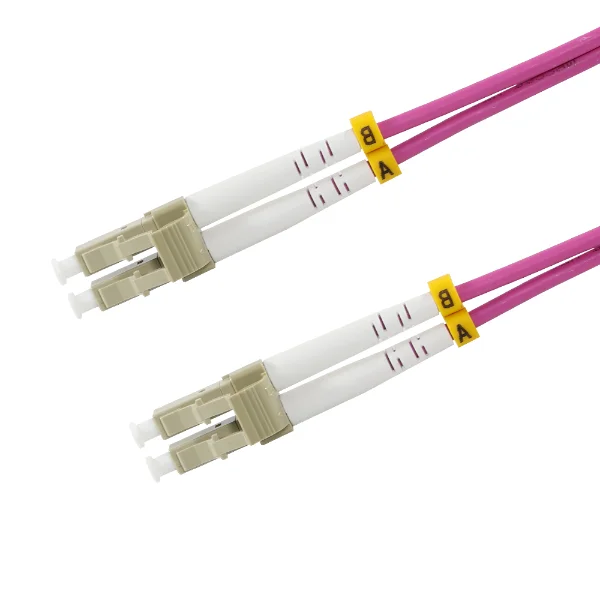

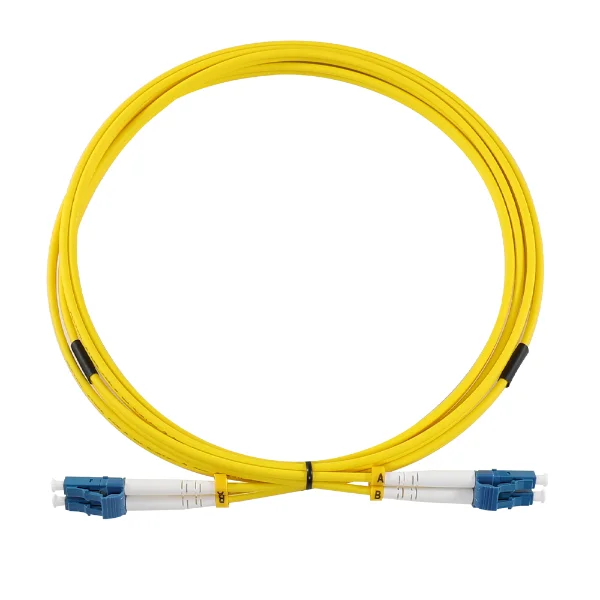

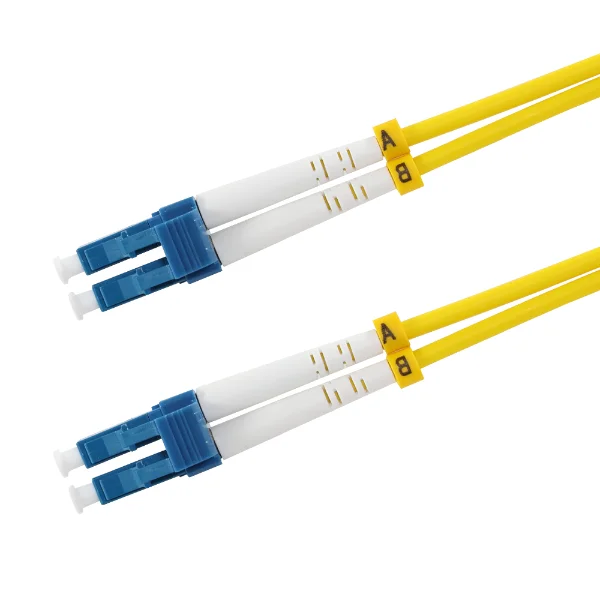

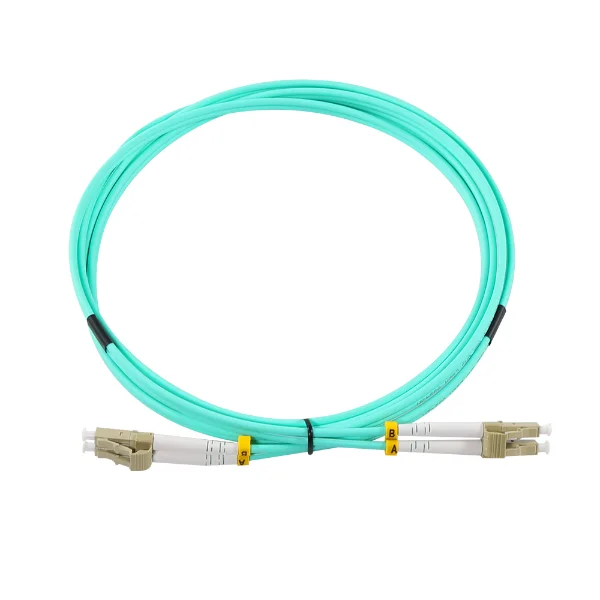

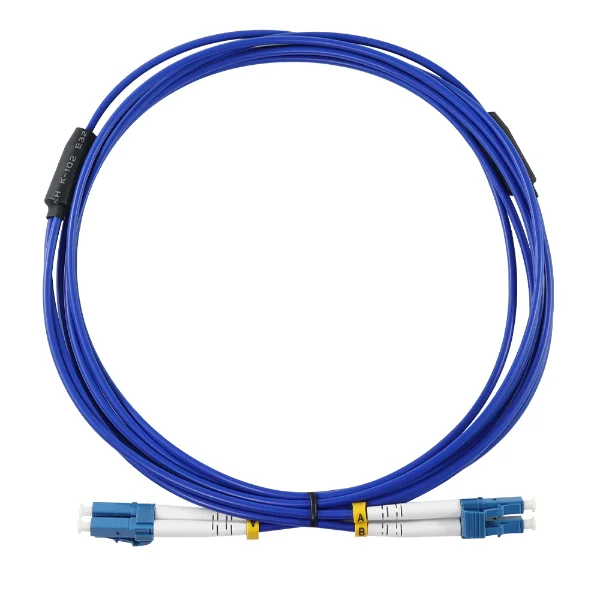

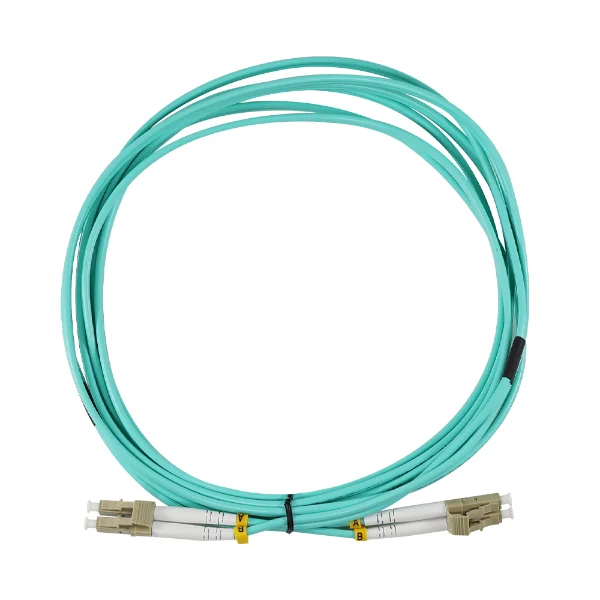

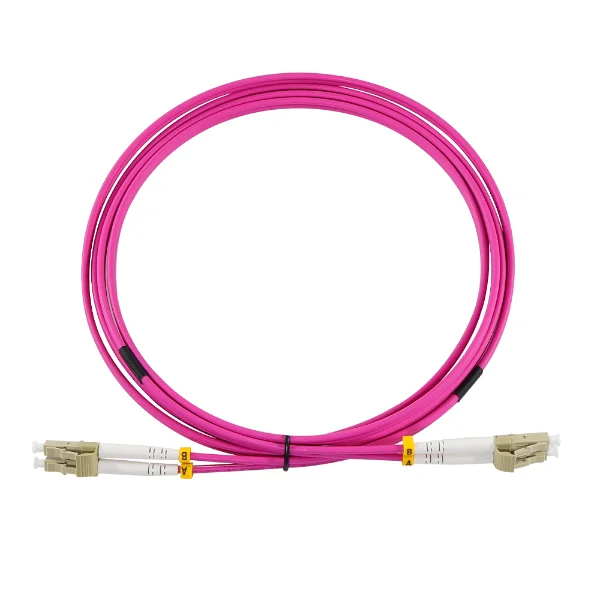

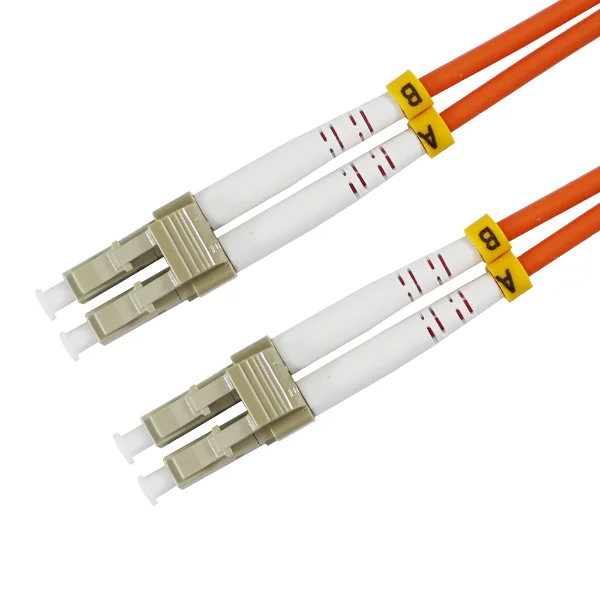

LC-LC Duplex Fiber Optic Patch Cord OM3/OM4 Multimode (50/125μm) / OS2 Singlemode (9/125μm) -Low Insertion Loss ≤0.2dB -HT
Low Loss Fiber Optic Patch Cord – Premium Quality for High-Speed Connectivity
Our fiber optic patch cord delivers exceptional performance with low insertion loss ≤0.2dB, available in both OM3 lc-lc fiber patch cord/OM4 fiber optic patch cord lc-lc(50/125μm) and OS2 patch cable lc-lc(9/125μm) options. These high-performance fiber optic patch cables feature precision LC/UPC connectors with ceramic ferrules, ensuring reliable signal transmission for critical network infrastructure.

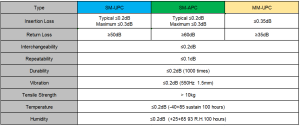

Technical Specifications
Key Applications
- Data Center Interconnect: OM4 cables support 40G/100G Ethernet (SWDM4 compliant)
- FTTH Deployment: Bend-insensitive design for compact installations
- 5G Network Infrastructure: Low-latency transmission for fronthaul networks
- Industrial Ethernet: Available with armored protection for harsh environments
Certifications & Compliance
ISO 9001:2015 | CE 2014/30/EU | RoHS 2011/65/EU
HS Code: 8544.70.00 (Optical fiber cables for telecommunications)
Flexible Ordering Options
✓ MOQ Requirement:Order from 1 piece to bulk quantities
✓ Full OEM Services:
- Connector types (LC/SC/FC/ST)
- Custom lengths (0.5m-100m)
- Jacket colors & printing
- Special fiber grades (G.657.A1/A2)
✓ Lead Time:
- Standard products: 3 business days
- Customized: 10-15 days (Flexible scheduling for urgent projects)
*Global stock available in US/EU/Asia warehouses with -10 year warranty coverage.*
This LC-LC fiber optic patch cord is your ideal solution when seeking a reliable bulk fiber patch cords manufacturer or fiber optic patch cord supplier in China. Our products meet all major international standards for fiber optic connectivity while offering unmatched customization flexibility.
How to Choose LC-LC Patch Cords?
Q1: Single-mode (OS2) or Multimode (OM3/OM4)?
- Choose OS2for:
✓ Long-distance (>1km)
✓ 5G fronthaul / Telecom - Choose OM3/OM4for:
✓ Data centers (≤150m)
✓ Cost-sensitive projects
Q2: UPC or APC Polish?
| Type | Return Loss | Best Use Case |
| UPC | ≥50dB | Standard datacom links |
| APC | ≥60dB | High-speed/PON networks |
Q3: How to Verify Quality?
1.Check insertion loss (≤0.3dB for OM4)
2.Confirm IEC 61753-1 certification
3.Request test reports (TIA-455-78B compliant)
Q4: Custom Length Options?
- Standard: 1m/2m/3m/5m/10m
- Custom: 0.5m–50m (±0.1m tolerance)
Q5: Armored vs Non-Armored?
- Armored: Outdoor/industrial use (IP67 rating)
- Non-Armored: Rack-to-rack in data centers
